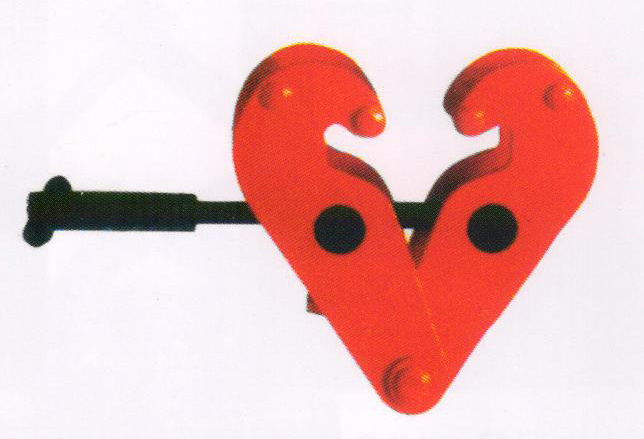

冶金夾具系列
| 工作載荷 kg | 適用橫梁 mm | A mm | B | c mm | D mm | E mm | F | G mm | H mm | ||
| min mm | max mm | min mm | max mm | ||||||||
| 1000 | 75-220 | 260 | 180 | 360 | 64 | 5 | 215 | |102 | 155 | 25 | 22 |
| 2000 | 75-220 | 260 | 180 | 360 | 74 | 6 | 215 | |102 | 155 | 25 | 22 |
| 3000 | 80-320 | 354 | 235 | 490 | 103 | 8 | 260 | 140 | 225 | 45 | 24 |
| 5000 | 80-320 | 354 | 235 | 490| | 110 | 10 | 260 | 140 | 225 | 45 | 28 |
| 10000 | 90-320 | 365 | 320 | 505 | 120 | 12 | 280 | 170 | 235 | 50 | 40 |
